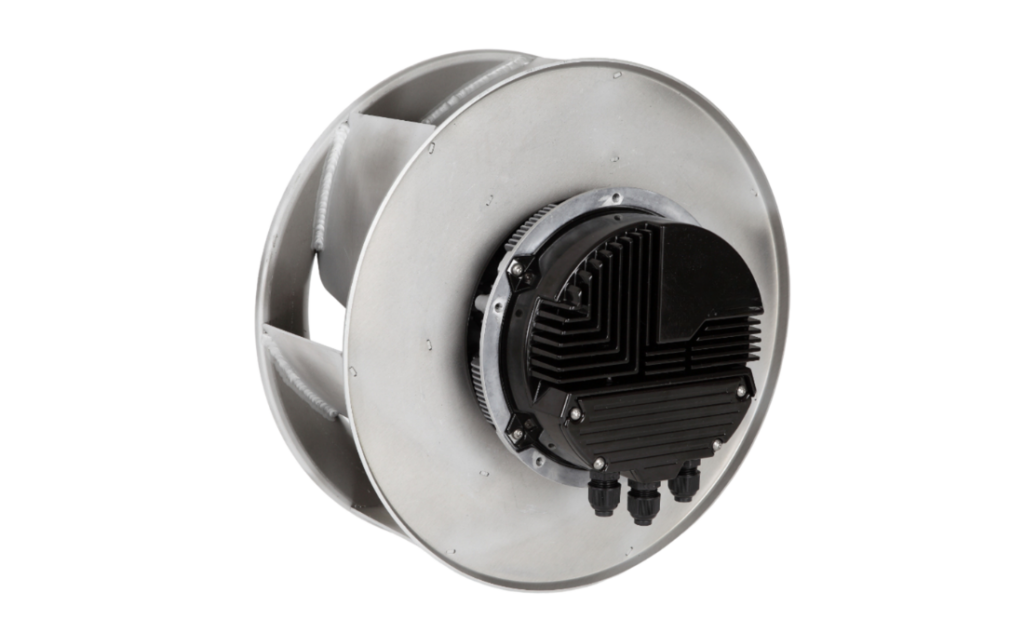

Kohmer EC (Electronically Commutated) fans are state-of-the-art air movement solutions that merge brushless DC motors with integrated electronic controls. This advanced technology provides high efficiency and versatile performance, making them ideal for modern applications. Combining exceptional performance with energy savings and sophisticated control capabilities, Kohmer EC fans are designed to meet the demands of today’s air movement needs.

Key Features

• Models: 8 fans solutions featuring various impeller and motor combinations
• Self-Cooling Structure: Optimizes airflow with fins and heat sinks to cool internal components.
• Lighter and Smaller: Compact fan with high power density for flexible installation.
• Enhanced Protection: Upgraded to IP55 and surge resistance of 4k-6kV.
• Smart Functionality: Intelligent control for improved safety and multifunctionality.

Technical Data

• Fan Wheel Diameters: Ranging from 315 mm to 710 mm
• Drives: Advanced EC motor; 0.25 – 10 hp; includes integrated speed control.
• Air Flow / Pressure: Up to 20,000 CFM; maximum pressure of 3000 Pa
• Material of Construction: Galvanized steel / Stainless Steel / Aluminium
• Temperature Range: 32°F to 140°F / 0°C to 60°C
• Motor Protection Class: IP54
• Motor Insulation Class: B / H
• Supply Voltage: 415 V AC 3 Phase / 230 V AC Single Phase

Applications

• HVAC Systems: Enhances energy efficiency and control in heating, ventilation, and air conditioning.
• Refrigeration: Optimizes cooling while minimizing energy consumption.
• Data Centers: Maintains precise temperature control for effective cooling.
• Industrial Processes: Provides reliable and efficient airflow for various industrial applications.
• Fan Array: Provides superior airflow and cooling efficiency for optimal temperature control and reliable performance.
